Frame
Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork
RockShox Zeb Select, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset
Headset
Acros integrated sealed bearing, tapered

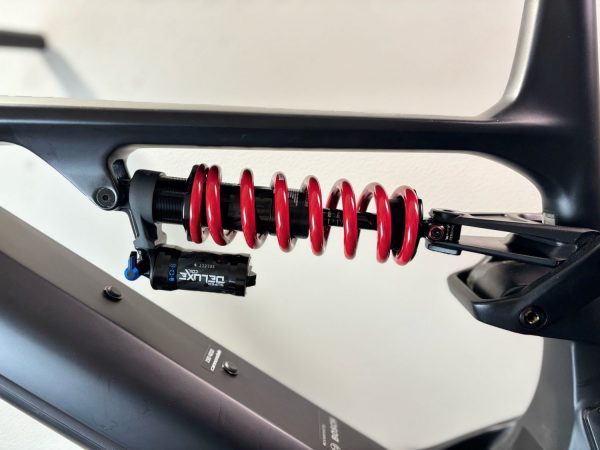

Rear Shock
RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound
E-System
Drive Unit
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Display
Bosch Kiox 300 w/ LED remote
Drivetrain
Rear Derailleur
Shimano XT
Shifters
Shimano SLX, 12-speed
Chain
Shimano SLX, 12-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs
Shimano SLX, 10-51, 12-speed
Brakes
Brakes
SRAM Code R hydraulic disc, 220/200mm centerline rotors
Brake Levers
SRAM Code R hydraulic disc
